Pulping Equipment

Pressure Screen for Stock Screening

Name: Pressure Screen
Brand: Allwin Machinery

A pressure screen removes oversize contaminants from stock while the line stays under pressure, so it can sit inline without a break tank. Rotor type and cylinder slot size together decide both removal efficiency and how much good fibre you lose to rejects.

Waste paper stock preparationChemical pulp cleaningPaper machine approach flow screeningCoating color screening

Request a quote WhatsApp

Built to drawing or sample · Export packed · Ships from Qingdao

Overview

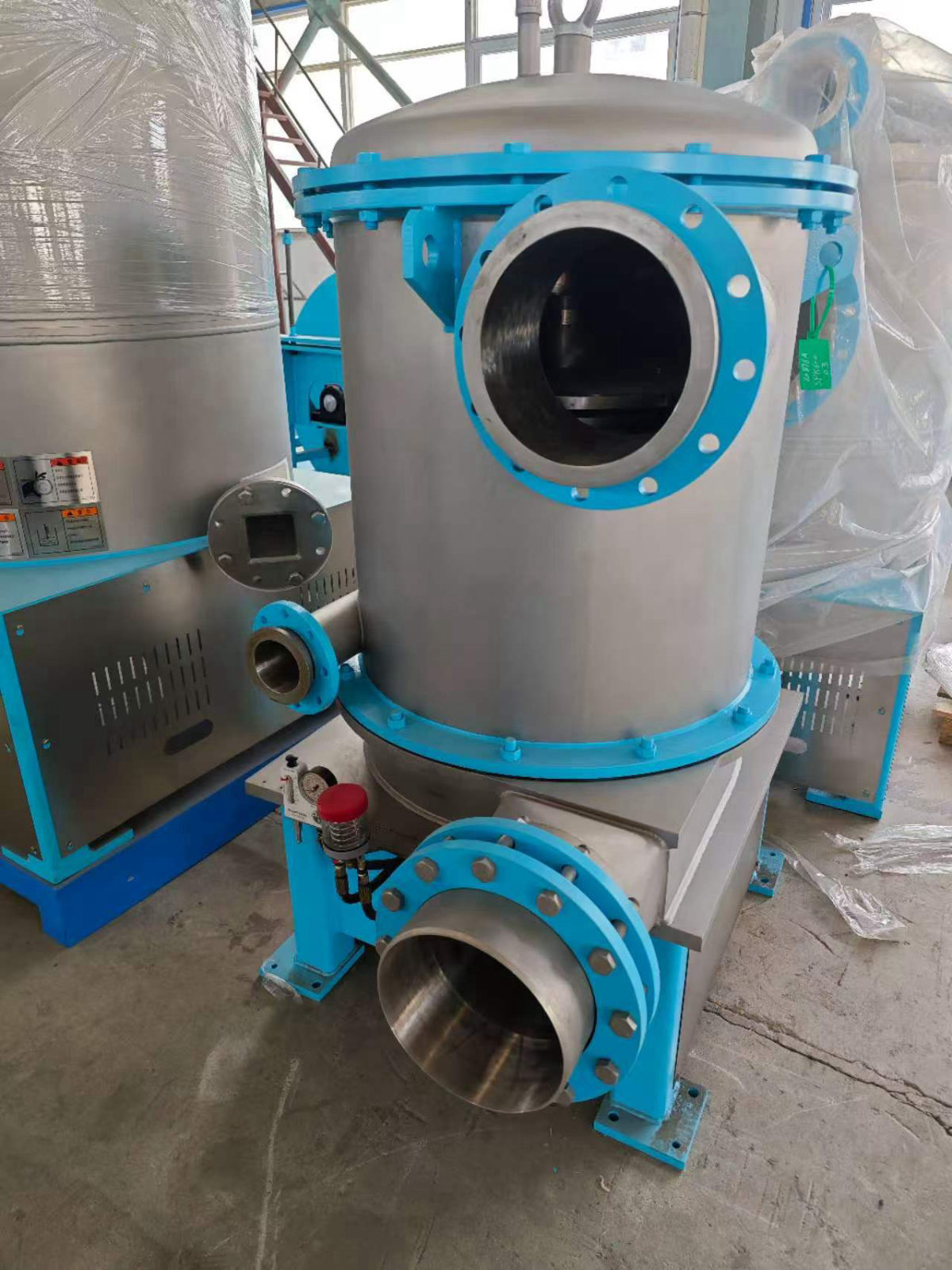

The Pressure Screen provides precision screening for removing contaminants from pulp suspension. Available with multiple rotor designs optimized for various pulp types including waste paper, chemical pulp, and mechanical pulp. The screen cylinder features precise slot or hole sizing for targeted contaminant removal while minimizing good fiber loss.

Construction and features

Multiple rotor designs for different pulp types
Precision screen cylinder with slots or holes
Low pulse operation for stable paper quality
Easy screen plate replacement
Energy-efficient rotor design

Where it is used

Waste paper stock preparationChemical pulp cleaningPaper machine approach flow screeningCoating color screening

Specifications

Types	outflow, inflow, pressure and fiber fractionating screens
Max production	660 t/d

Send an enquiry

Technical questions

Pressure Screen — common questions

Should I use a slot cylinder or a hole cylinder?

Slots (typically 0.15-0.35 mm) for fine contaminant removal on recycled furnish. Holes (1.2-3.0 mm) where capacity matters more than fine screening. Most recycled lines run a coarse hole screen first, then a fine slot screen.

How do I keep good fibre loss down?

Match the rotor to the furnish and hold reject rate at roughly 3-8% of feed. Pushing reject rate lower than that usually trades fibre loss for debris in the accepts.
