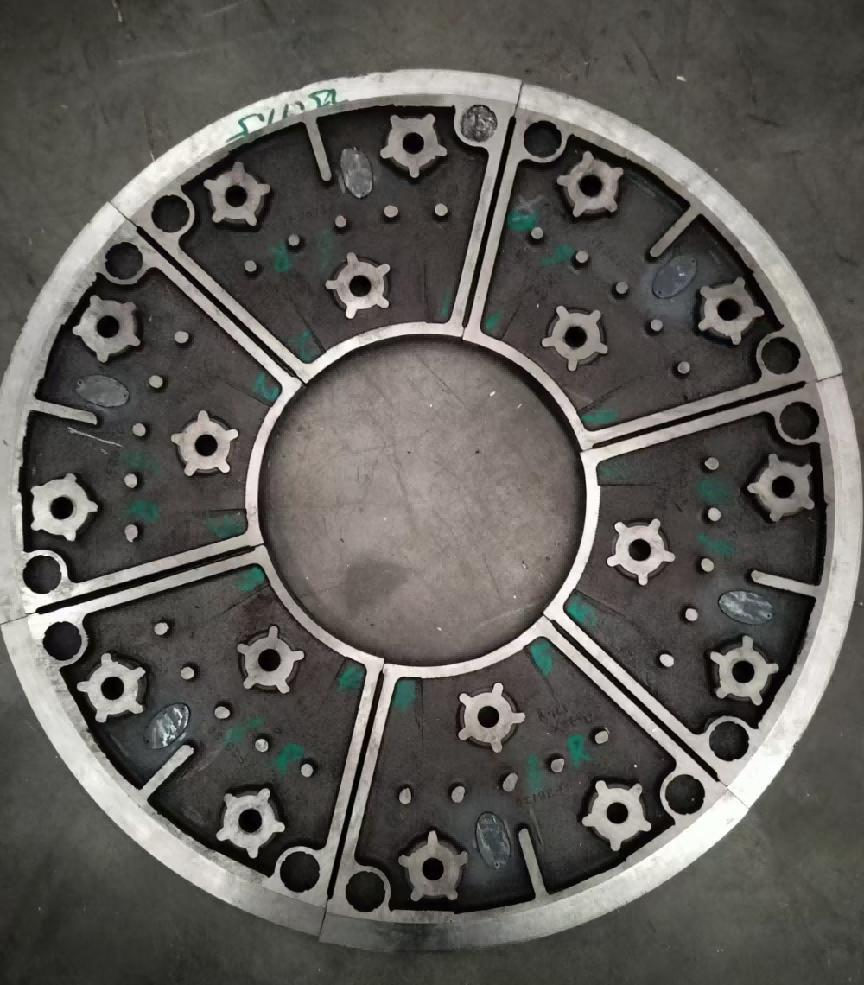

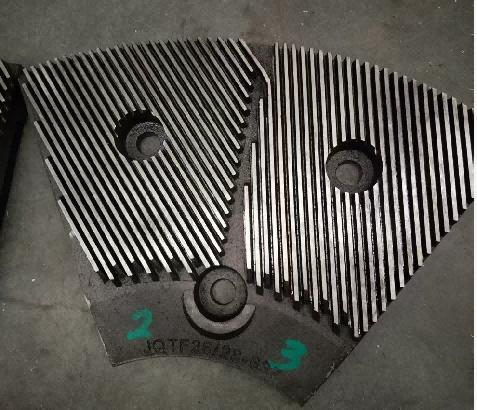

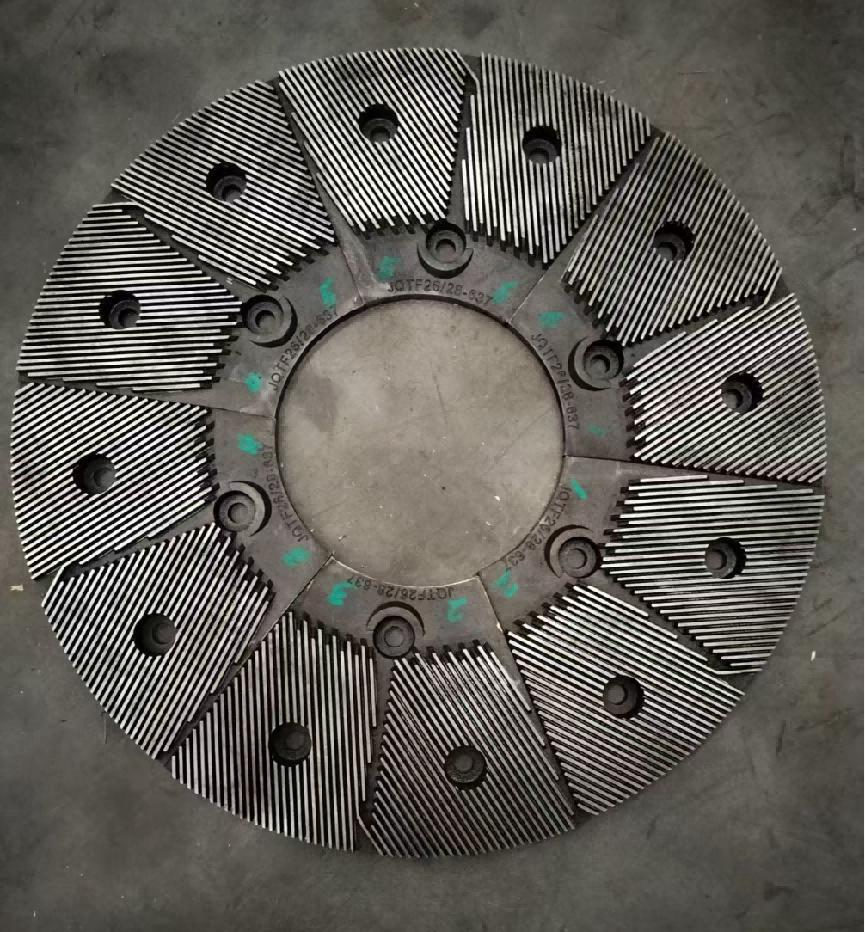

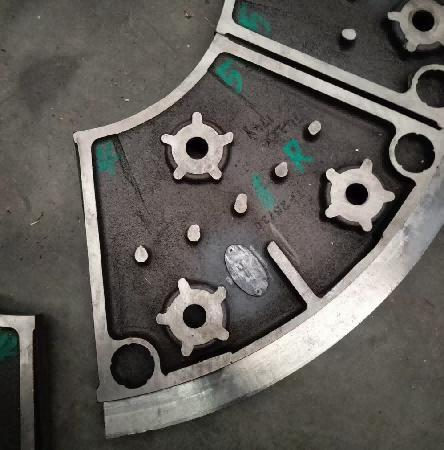

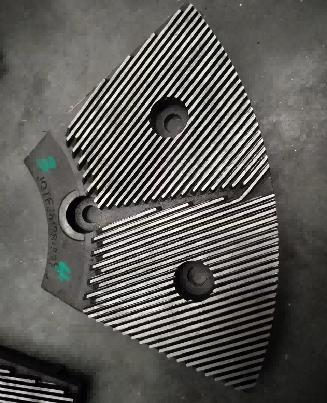

Refiner Discs and Plates
Disc pattern sets the balance between cutting (freeness drop) and fibrillation (strength development). We machine to your existing refiner's mounting pattern, so a replacement set drops in without an adapter.
Built to drawing or sample · Export packed · Ships from Qingdao
Overview
High-performance refiner discs designed for optimal fiber treatment in pulp processing. Available in various patterns and materials to meet different pulp requirements. The disc pattern is engineered to provide the best combination of refining, cutting, and fibrillation for your specific application.
Construction and features
- Various patterns for different pulp requirements
- High-quality alloy steel or stainless steel
- Precise CNC machining for consistent performance
- Extended service life with wear-resistant treatment
- Custom patterns available upon request
Where it is used
Specifications
| Refiner output | up to 150 t/d |
|---|---|
| Furnish | chemical, mechanical and waste paper pulp |
Send an enquiry
Refiner Disc — common questions
Can you match an OEM disc pattern?
Yes. Send the mounting drawing, or a worn disc if drawings are lost. We map the bar profile, groove width, dam height and taper, then cut the pattern on CNC.
How long does a set of discs last?
Disc life tracks furnish abrasiveness, specific refining energy and bar clearance far more than calendar time. Mills on clean kraft see much longer life than mills on recycled furnish carrying mineral filler.
