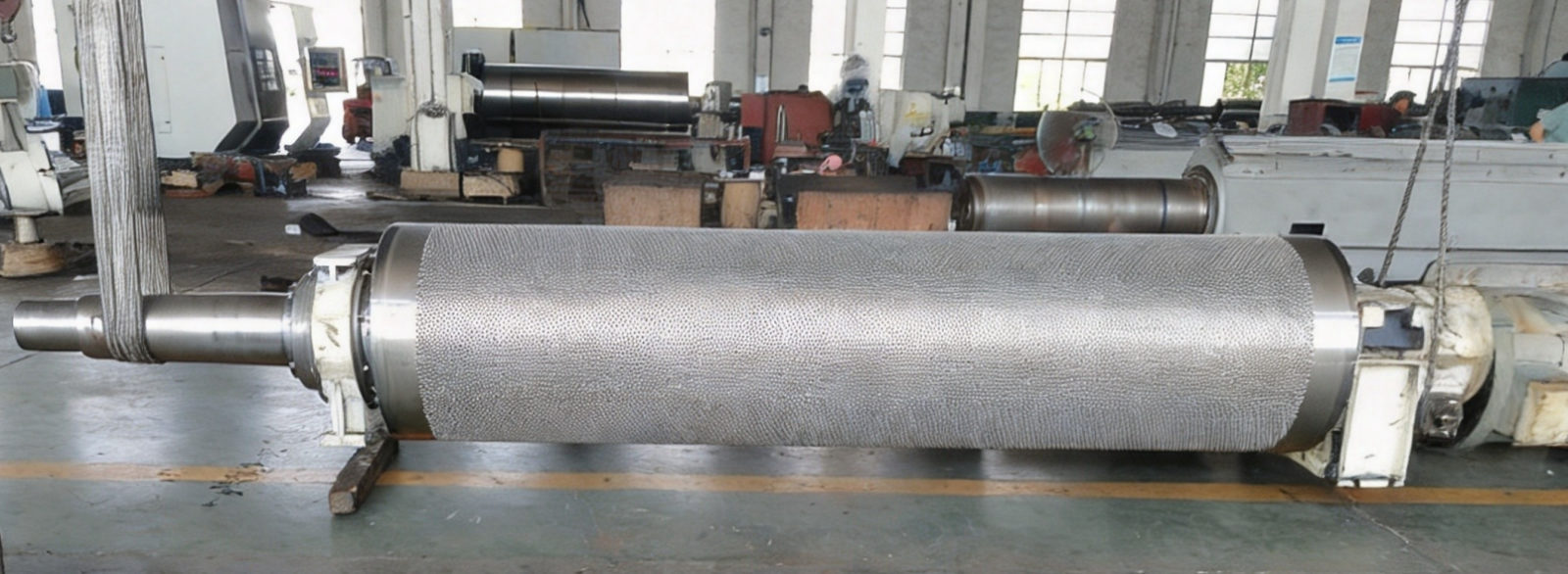

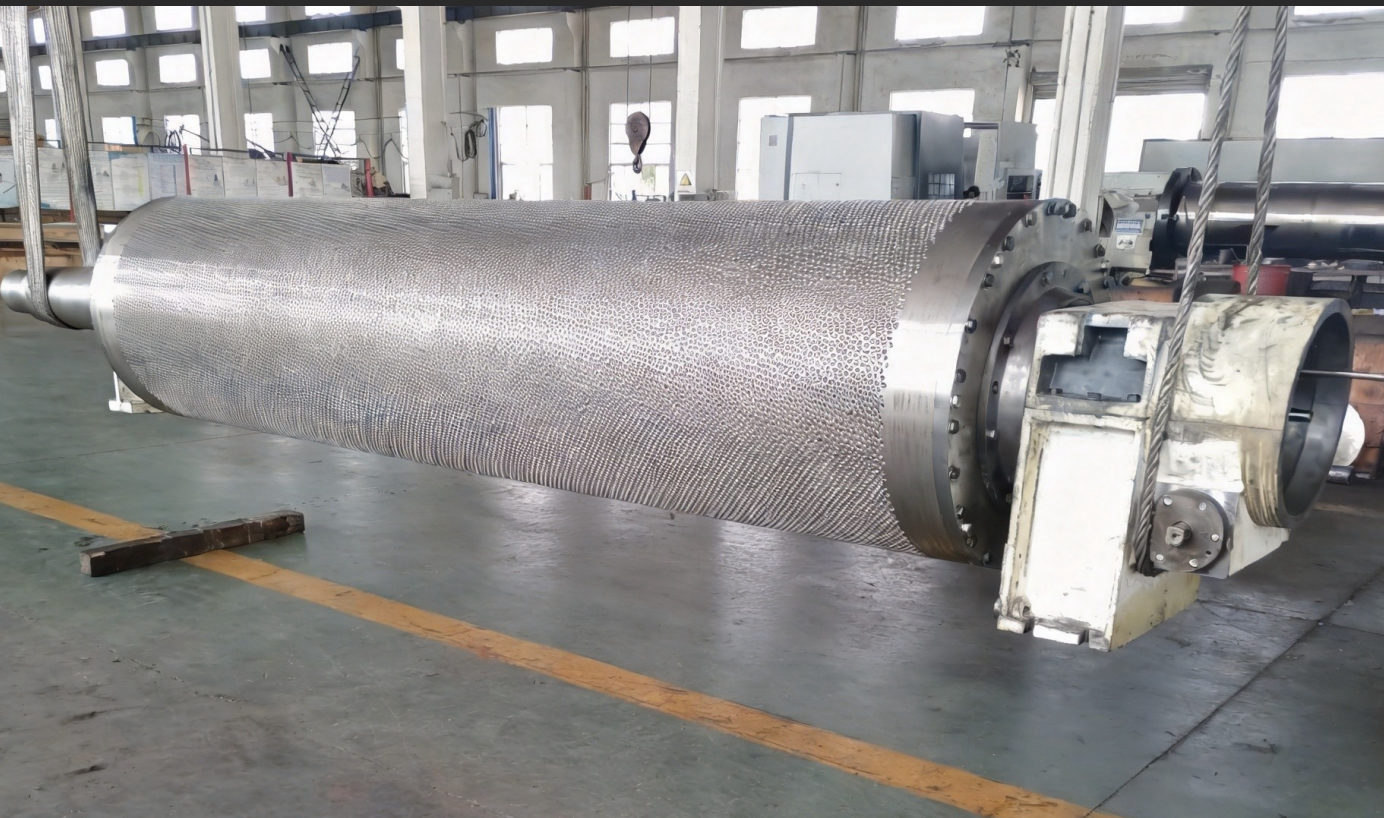

Vacuum Rolls and Suction Rolls
A vacuum roll holds the web against the shell by drawing air through the shell, which is how the sheet is transferred at open draws and dewatered in the press section.
Built to drawing or sample · Export packed · Ships from Qingdao
Overview
High-performance vacuum rolls for efficient dewatering with optimized open area ratio. The precision drilled and cast shell design ensures uniform vacuum distribution for consistent sheet dryness across the full machine width.
Construction and features
- Optimized open area ratio
- Precision drilled shell
- Uniform vacuum distribution
- Internal seal design for long life
- Various diameter options
Where it is used
Specifications
| Shell material | SS304 |
|---|---|
| Max face length | 6,765 mm |
| Diameter | 1,020 mm |
| Machine speed | 1,000 m/min (press roll) |
| Suction zones | 1 - 3 |
| Rubber cover | STOWOOD or equivalent |
| Seals | LERIPA or equivalent |
Send an enquiry
Vacuum Roll — common questions
Drilled or grooved shell?
Drilled shells for dewatering duty in the press section; grooved shells where you need to carry the web without marking it. Some positions use both.
What wears out first?
The suction box seals and the shell cover. Seals are a consumable; a worn shell shows up as uneven vacuum across the width.
Related equipment

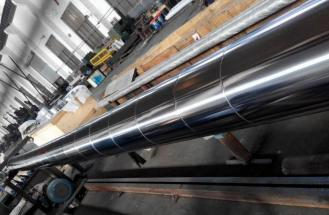

Arc Roll
Curved arc roll for web spreading and wrinkle elimination.
View details

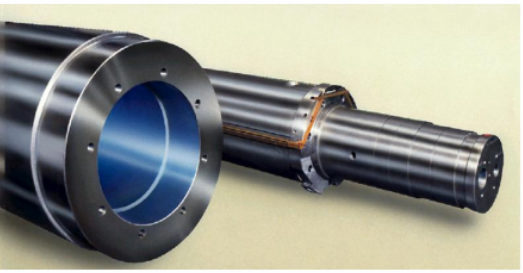

Floating Roll
Self-adjusting floating roll for precise web tension control.
View details

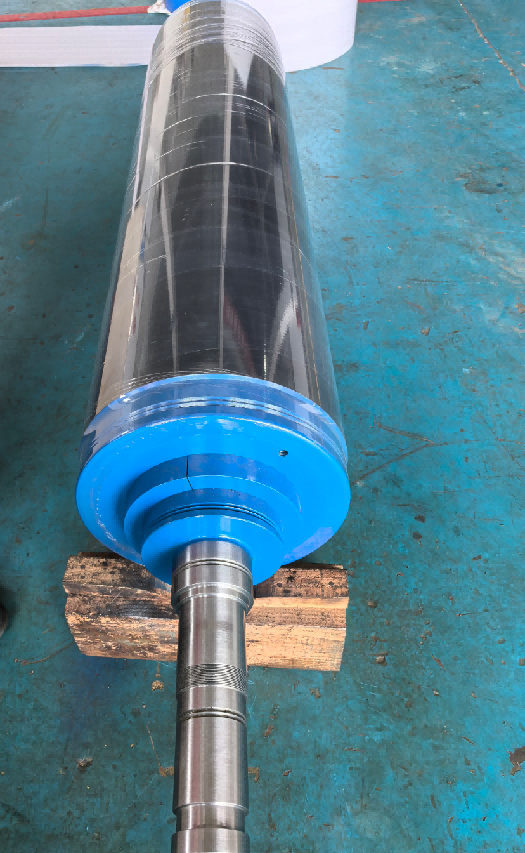

Pulp Roll
